DIPTFE membrane pleated filter element

DIPTFE series pleated filter element is made of imported hydrophilic modified polytetrafluoroethylene (PTFE) filter membrane.
■ Extensive chemical compatibility;
■ Resistant to strong acid and alkali;
■ Hydrophilic property after modification;
■ Directly filter polar aqueous solution;
■ Integrity test before delivery to ensure absolute sterilization.


170386716472

Material of filter element components:
Filter material : Hydrophilic PTFE (DIPTFE) membrane

Supports/Diversion : PP

Core/Cover/End cover/End caps : PP

Sealed leads/Fins : PP,Built in stainless steel

O-Ring : 222,226 silicon rubber etc.

Sealing technology : Hot melt without adhesives


Characteristics and features

  • Excellent high-tem resistance and extensive chemical compatibility.

  • All constituent materials comply with the biological test characteristics of USP Class VI 121 ℃ plastic products, and comply with the food contact materials listed in the relevant provisions of Chapter 21 of the United States Federal Regulations (CFR).

  • Excellent hydrophilicity, suitable for sterilization and filtration of strong acid and alkali liquid.

  • The sampling of filter element successfully passed the bacterial challenge test required by regulations, LRV≥7.Integrity can be maintained after repeated high-pressure disinfection.

  • Each filter element should pass the integrity test before leaving the factory. The limitations of integrity testing were correlated with the results of bacterial challenge experiments.

  • It is manufactured under ISO 9001 and ISO 14001 systems and Class 100 environment.

  • Production and usage are traceable.

  • Large air flow, low differential pressure and long service life.


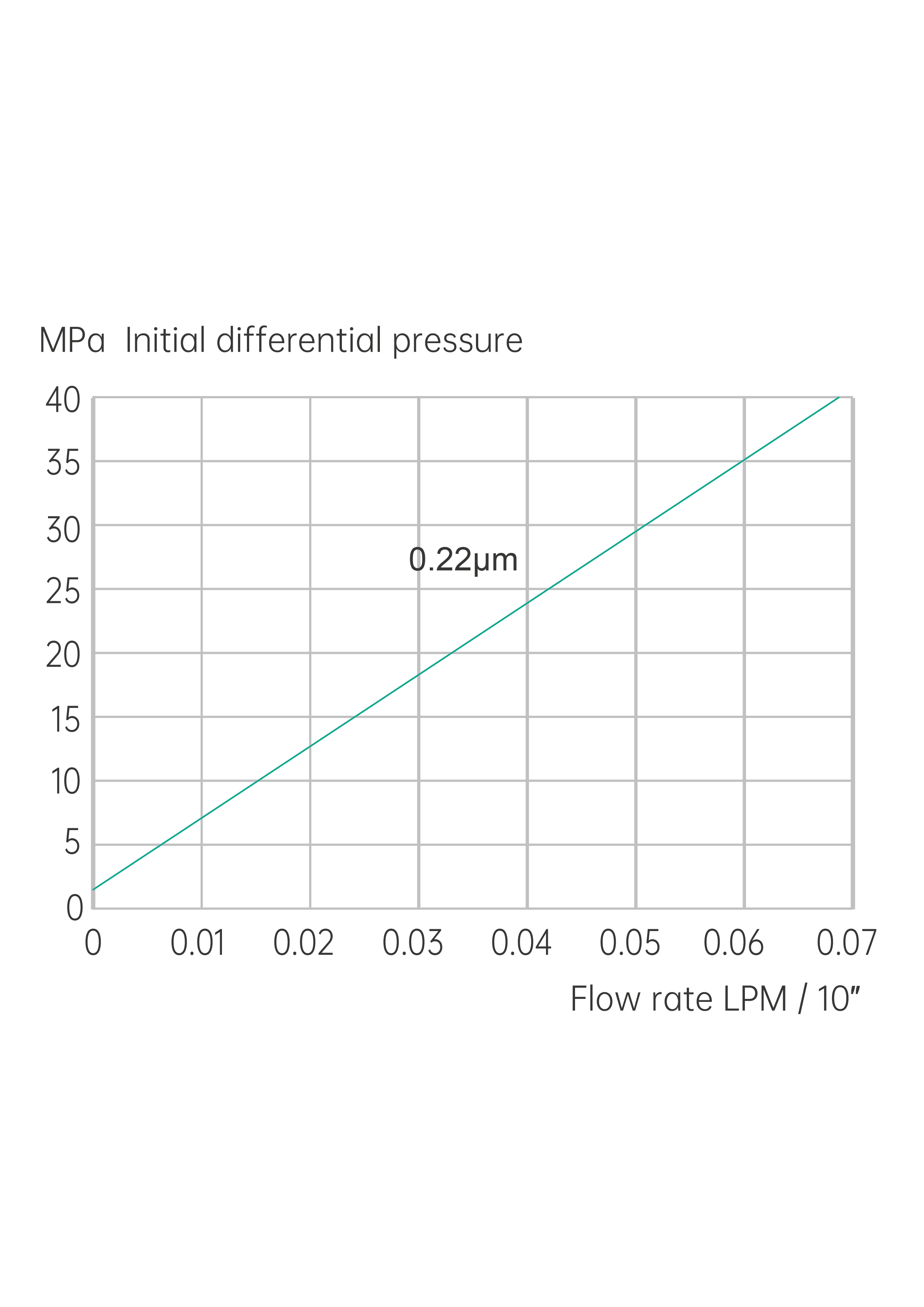

Technical specifications and operating parameters

Size

Diameter: 2.75" (69 mm)

Length: 5"/10"/20"/30"/40" etc.

Filtration Area

Single 10" filter element is about 0.65m²

Minimum Bubble Point of Integrity Test Data

0.22μm: ≥ 0.1MPa

0.45μm: ≥ 0.06MPa

Accumulated Steam Sterilization Time
(IPA/Alcohol)

121°C, 100 hours

140°C, 40 hours

Under experimental conditions

Maximum Differential Pressure

Positive:0.4MPa

Negative:0.2MPa
25°C


Typical application

  • Sterilization and filtration of corrosive liquid

  • Disinfection and filtration of solvent

  • Sterilization and filtration of strong oxidizing liquid

  • Filtration of chemical reagents


Adapter Style

PTFE membrane pleated filter cartridge Adapter Style



Ordering information

1

2


3

4

5

6

7

DIPTFE

0.22

---

10

A

S

P

--X


1

Membrane

DIPTFE membrane

2

Pore size

0.1, 0.22, 0.45um

3

Length

5” / 10” / 20” / 30” / 40”

4

Connector/End Cover

A/AA/B/BB/C/CC/D/E/EE/F

Spear+222

Spear+222adapter with encapsulated reinforcing stainless steel ring

Flat+222

Flat+222adapter with encapsulated reinforcing stainless steel ring

Spear+226

Spear+226adapter with encapsulated reinforcing stainless steel ring

Flat+Flat

Flat+226

Flat+226adapter with encapsulated reinforcing stainless steel ring

Flat+215

Spear+3 Flange Bayonet adapter

5

Gasket Material

S, E, F, FF

S:silicon rubber

E:EPDM rubber

F:Fluorine rubber

FF:Encapsulated fluoroelastomer

6

Application

Pharmaceutical grade for bio-pharmaceutical&food and beverage industry

7

Special Specification Remarks

Standard Specification Default

Note: The service life of the steam sterilization and other technical parameters are tested under strictly controlled experimental conditions. However, the actual operating conditions and experimental conditions will be different. For the application of a specific process, the performance of the filter needs to be verified and confirmed.
