Laminar Airflow System

■ Material: SUS 304/316L stainless steel
■ Cleanliness Class: Class A
■ Noise: 65~75 dB
■ Filter Module: Panel filter, Gel HEPA filter
■ Power Supply: 220V, 50Hz
■ Certification: ISO 9001:2015, ISO 45001:2018

LENGE Laminar Air Flow Units with adjustable  fan speed complete with gel seal HEPA are a series of high efficiency products designed to protect equipment and other contents of the work zone from particulates to meet class A cleanliness requirements.


170386716472



Characteristics & Features:

  • Provides HEPA filtered airflow through the work area that protects the product from airborne contamination and provides a sferile environment , minimizing cross contamination.

  • Build-in LED light.

  • Differential pressure gauge monitors filter pressure drop.

  • Movable uniform membrane, wind speed will be uniformly distributed.


Technical Specifications & Parameters:

MaterialSUS 304/316L stainless steel
Filter ModulePanel filter, Gel HEPA filter
Core PartAir Blower
Rated Air Velocity (m/s)
0.45±20%
Cleanliness ClassClass A
Noise (dB)65~75
Working AreaSterile core area
Control ModeControl panel, touch screen, remote control+conrol panel
LightingBuilt-in LED light
Air Return Type
Side air return, ceiling air return
Mounting TypeCeiling type, stand type
Power Supply220V, 50Hz

Note: The specifications listed in above table are only for customer’s reference. It is mostly designed and manufactured according to customer’s URS.

Model No.Outer Size
W×D×H (mm)
Inner Size
W'×D'×H' (mm)
Gross Weight (KG)
LUFH12-120060
1200×600×6501200×600100
LUFH16-1001001000×1000×6501000×1000150
LUFH32-2001002000×1000×6502000×1000300
LUFH35-1801201800×1200×6501800×1200300
LUFH47-2401202400×1200×6502400×1200350
LUFH49-2001502000×1500×6502000×1500350
LUFH65-2002002000×2000×6502000×2000450

Note: The above dimensions are our standard, any changes will be based on the actual customer's requirements.


Containment System:

  • Economical laminar flow cabinet with clean, simple, low-maintenance design is a work bench with class 100 environment can be used in assembly, testing and inspection procedures that require a continuous flow of ultra clean air.

  • Provide a sterile positive pressure environment for the compounding of non-hazardous drugs.

  • Integrated fan filter module with low noise & energy efficient fan.


Product Outline Design:




气流和结构示意图

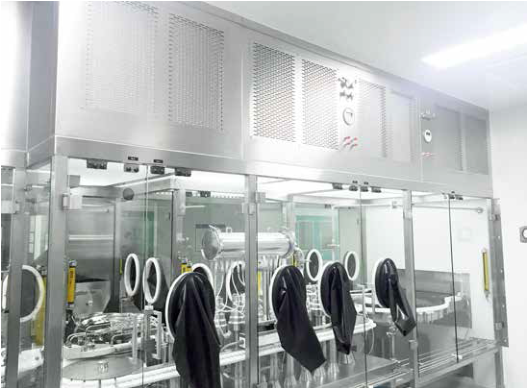

Part of Case Show:

微信图片_20220228125650

微信图片_20220228125656


Verification on Site:

Test the flow pattern of the laminar airflow system.
